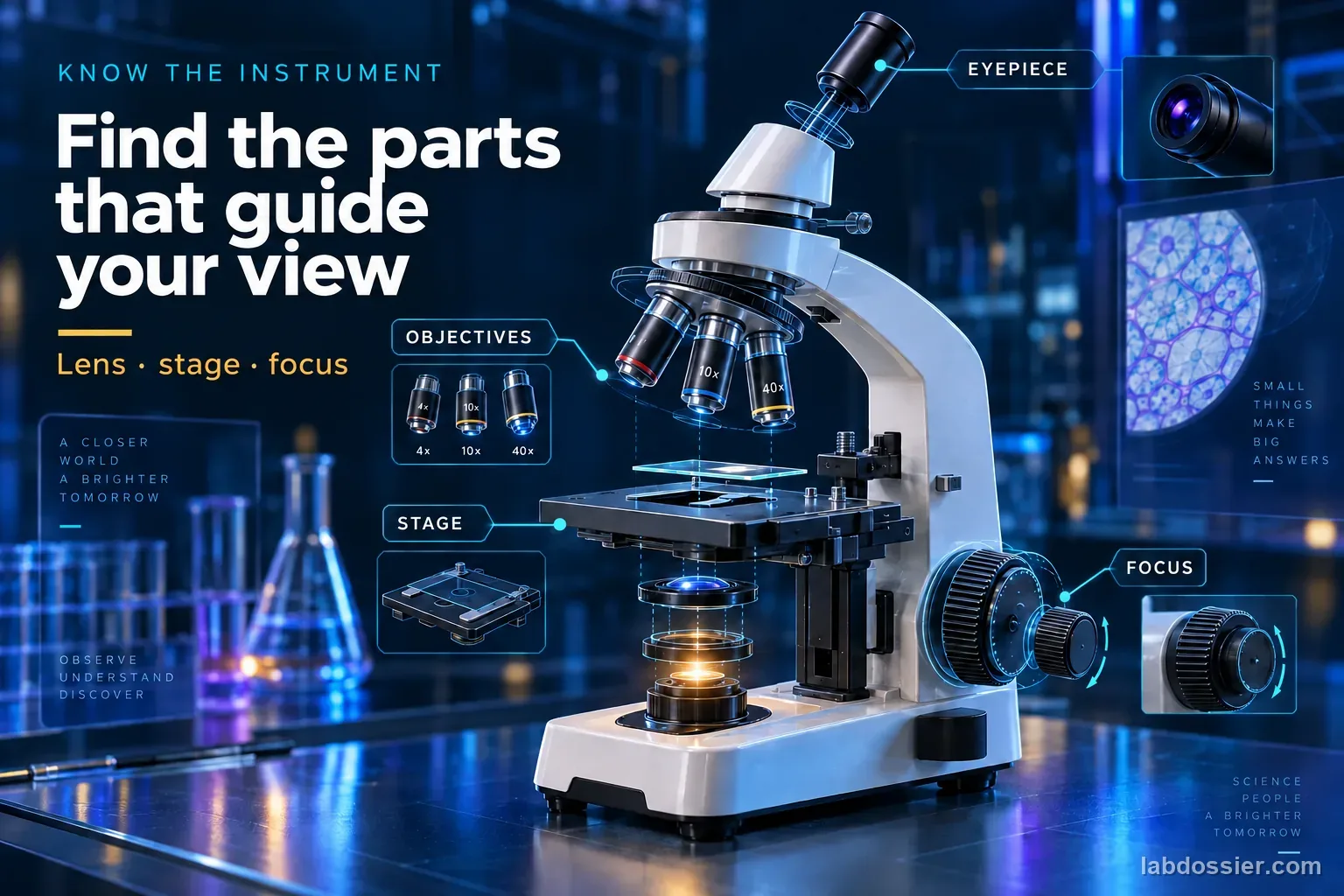

A compound microscope appears in a holographic exploded view with labeled eyepiece, objective lenses, stage and focus knobs. — The eyepiece and objective lenses magnify the specimen, the stage holds the slide, and the focus controls sharpen the image.

← RETURN TO LESSONLAB DOSSIER / GUIDED VIDEOENGLISH VOICEOVER · CAPTIONS

LAB SKILLS · GRADES 5–12

Focus a microscope field safely

INVESTIGATION QUESTIONWhich microscope adjustment brings a specimen into focus without losing the field?

● ILLUSTRATIVE SCIENCE MODEL

ENGLISH CAPTIONS

Carry the microscope with one hand at arm, one under base.

0.0 / 3.0 s

Open this clip on its dedicated video page →

01 / SCIENCE

What explains the result?

Begin at low power, secure and center the slide, focus carefully, then move to higher magnification and refocus with fine adjustment.

02 / EVERYDAY CONNECTION

Where does this matter?

Correct microscope setup protects slides and lenses while producing a usable view of cells and tissues.

03 / MODEL LIMIT

What should you keep in mind?

This model teaches a safe sequence; real microscope controls and magnification vary by instrument.

Continue to the interactive experiment ↓

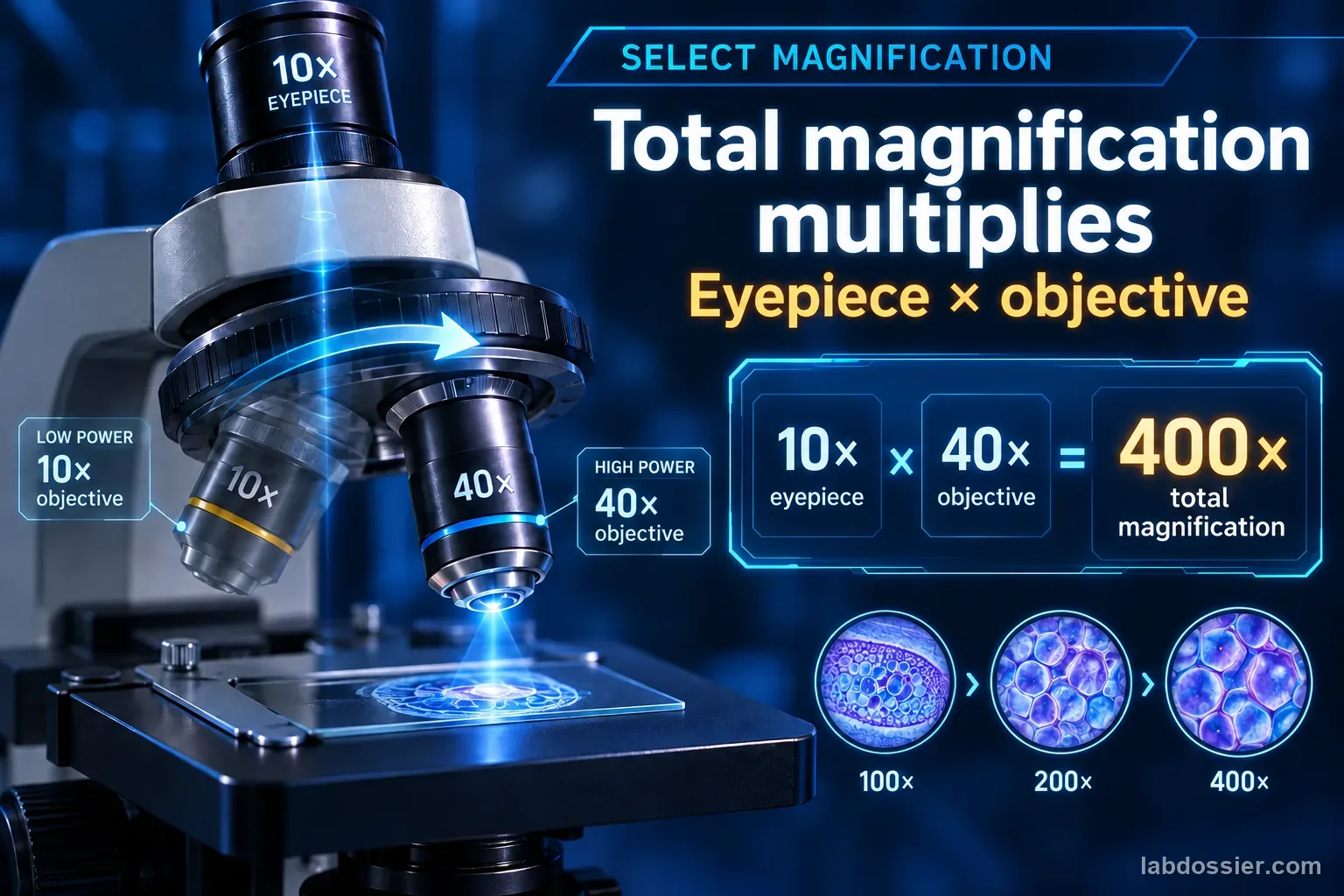

A microscope nosepiece turns between objectives beside a holographic calculation showing 10 times eyepiece and 40 times objective equals 400 times magnification. — Multiply the eyepiece magnification by the selected objective; for a 10× eyepiece and 40× objective, total magnification is 400×.

YOUR TASK

Which microscope adjustment brings a specimen into focus without losing the field?

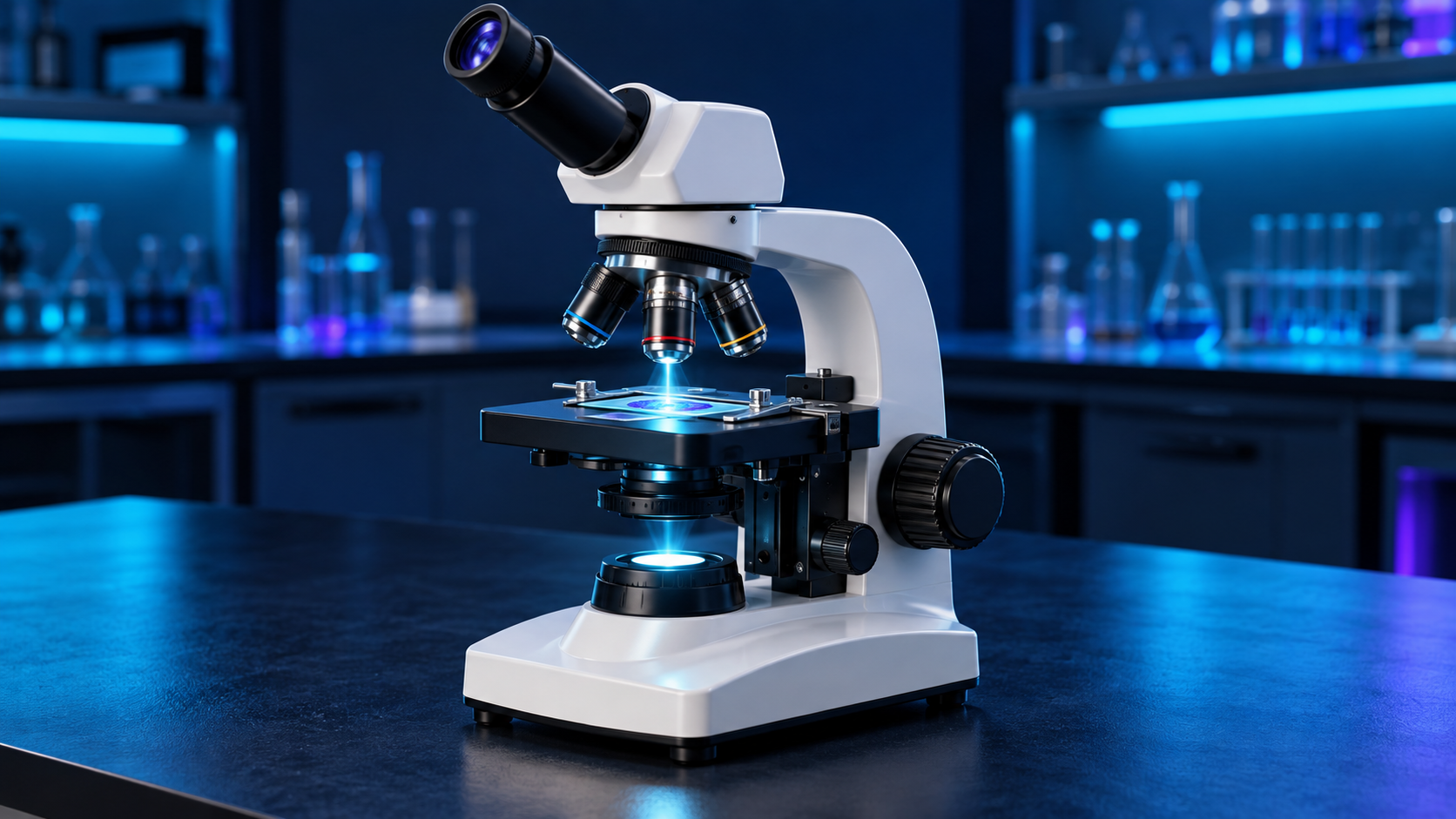

Focus a microscope field safely: experiment-specific laboratory scene

READ THE BENCH CARD

Match each microscope part to its job

Choose a labeled instrument part, then connect it to a matching function before moving to the next part. This model teaches a safe sequence; real microscope controls and magnification vary by instrument.

MATERIALS / DATAPrepared slide · Stage and clips · Objective lenses and focus knobs

INSTRUMENT CHECK · CLICK A PART

MATCH ITS JOB

Choose the job of the Eyepiece

WHAT TO TAKE AWAY

Begin at low power, secure and center the slide, focus carefully, then move to higher magnification and refocus with fine adjustment.

WHERE THIS IS USED

Correct microscope setup protects slides and lenses while producing a usable view of cells and tissues.

MODEL LIMIT This model teaches a safe sequence; real microscope controls and magnification vary by instrument. The activities on this page do not store classroom measurements.

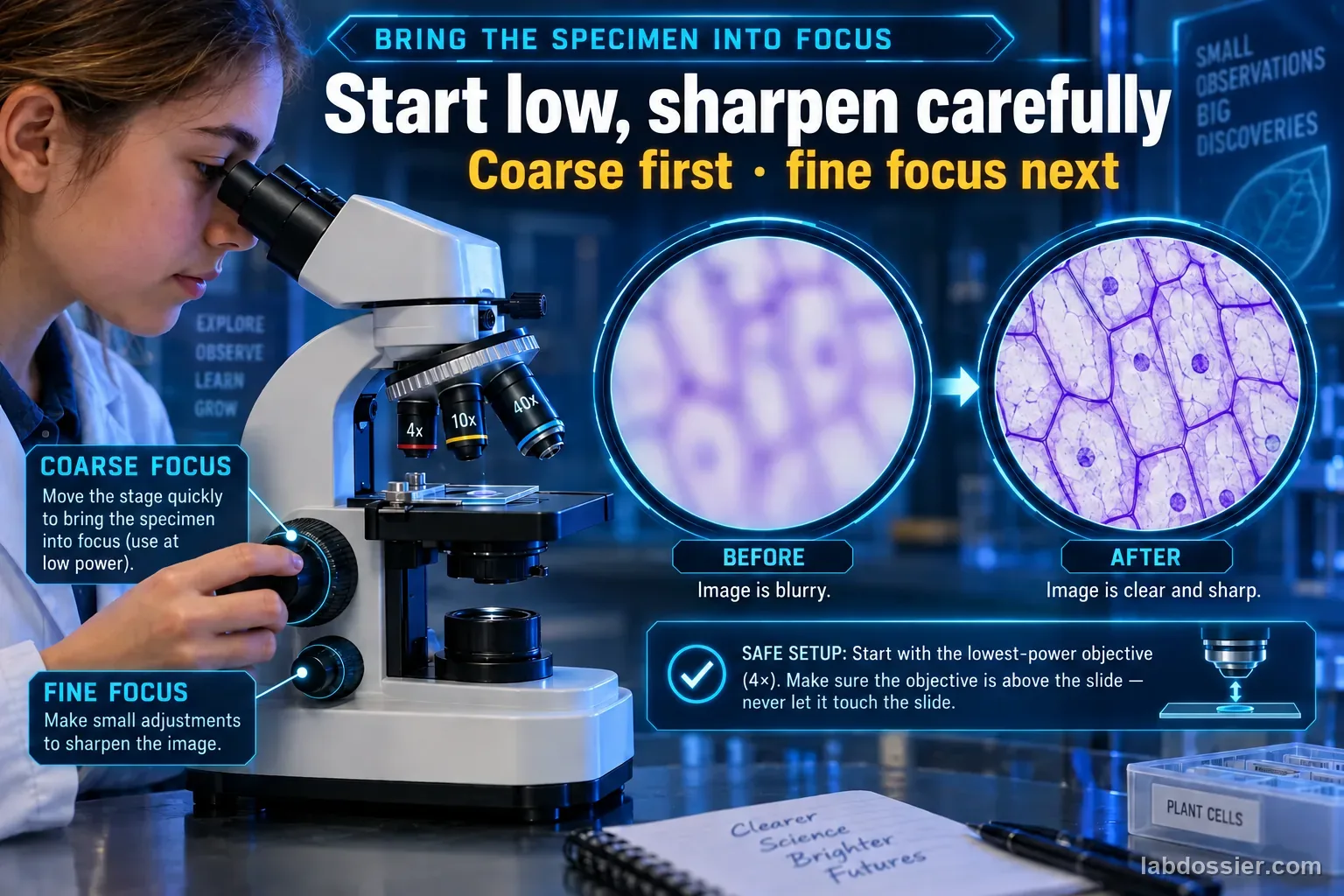

A student focuses a microscope from a blurred cell image to a sharp view while coarse and fine focus controls are highlighted. — Begin with the lowest-power objective and use coarse focus to locate the specimen; then make smaller fine-focus adjustments as needed.
